Sensor networked mobile robotics project

The traditional mobile robot architecture uses onboard sensors to see its environment. R2D2, the Terminator, and the majority of examples from science fiction (as well as non-fiction) all follow this form. These robots are limited to a first-person field-of-view. They also must solve the difficult problem of moving data fusion , which includes the correspondence problem and the self-localization problem. Images or data sensed from one viewpoint must be fused with data sensed from additional viewpoints as the robot (and hence sensors) move through the environment.

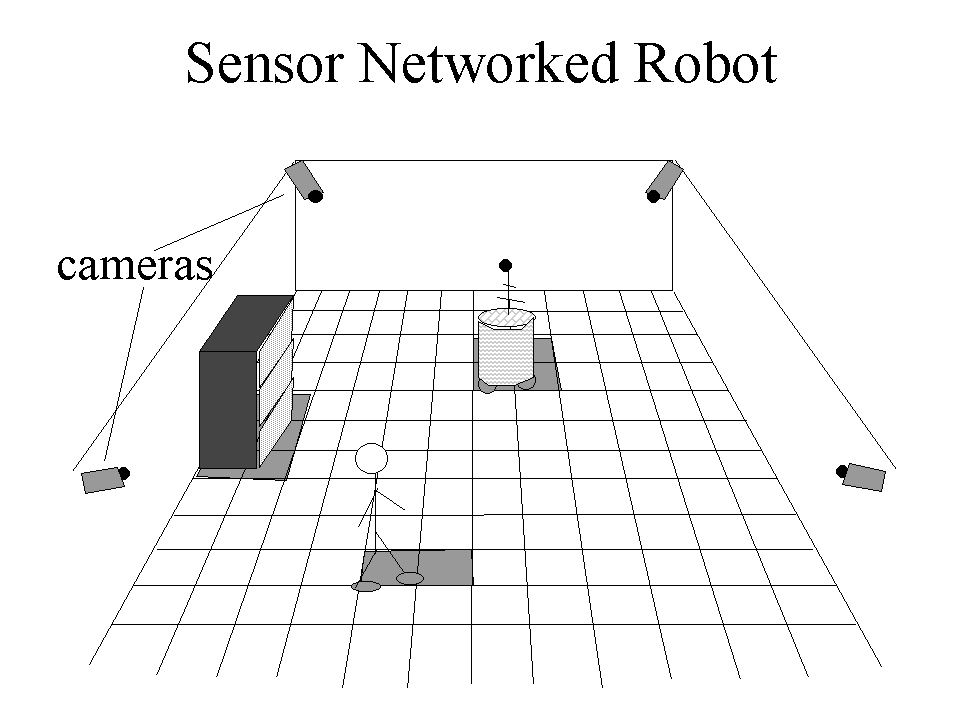

The sensor networked mobile robotics project researched an alternative architecture to mobile robotics. In this architecture, the sensors are deployed as a stationary network distributed throughout the environment. The robot itself is "blind", and sees by receiving transmissions from the sensor network. An SN robot enjoys a third-person perspective. This is sometimes referred to in the literary world as the "God's eye view". By being able to see the entire environment, the robot should be able to more effectively plan and execute motion. In addition, the data fusion problem is simplified, because although the robot moves, all the sensors remain stationary.

Demos

The following videos show an SN robot running into objects to watch what happens. From these interactions the robot can determine dynamic properties of the objects, such as their mass or coeeficient of friction with the floor. Sort of like a dog nosing objects in a sandbox.

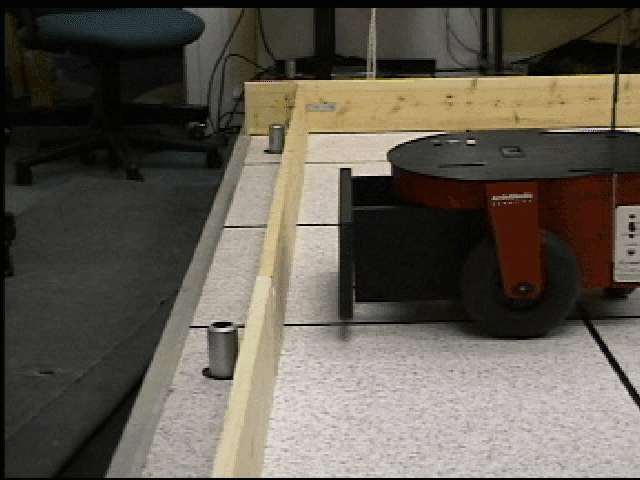

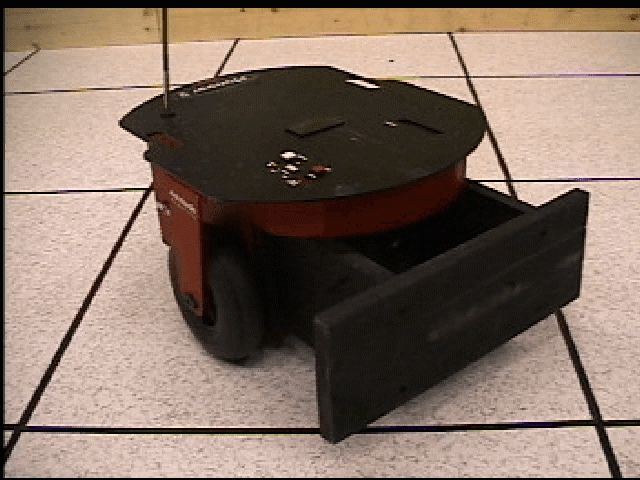

The robot was modified and fitted with a "ram":

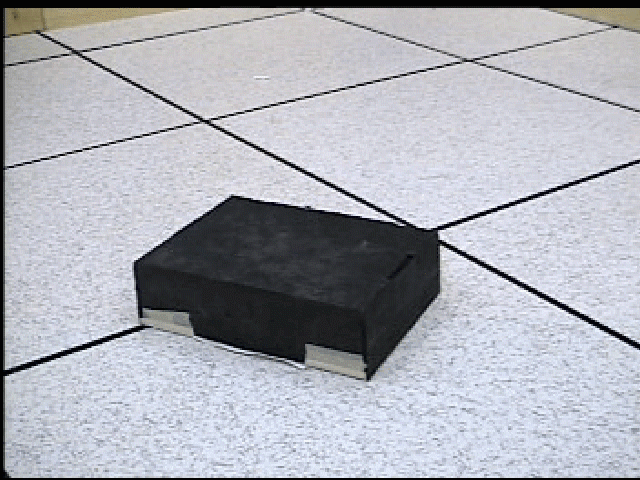

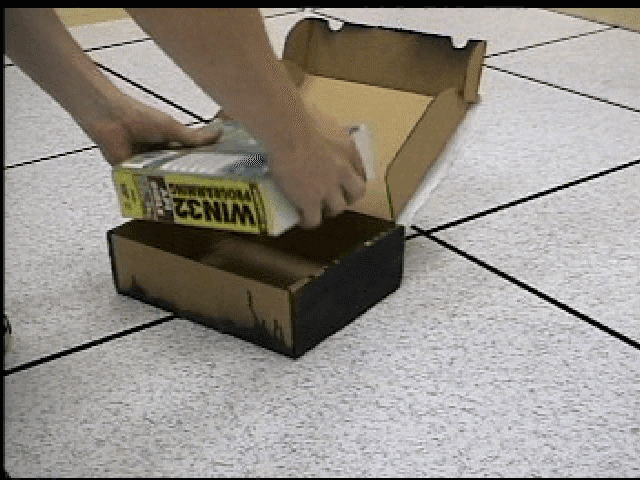

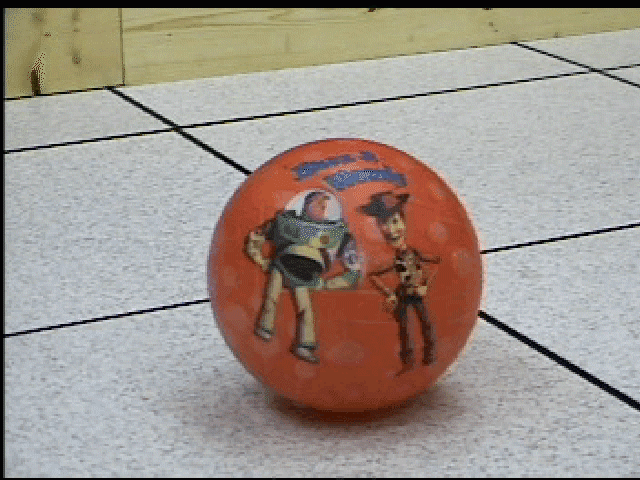

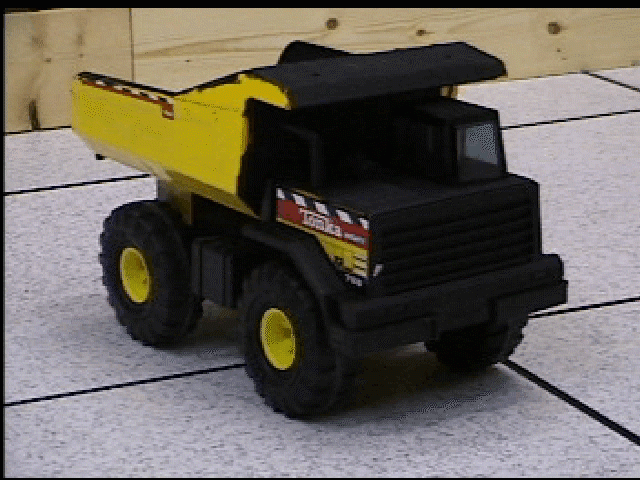

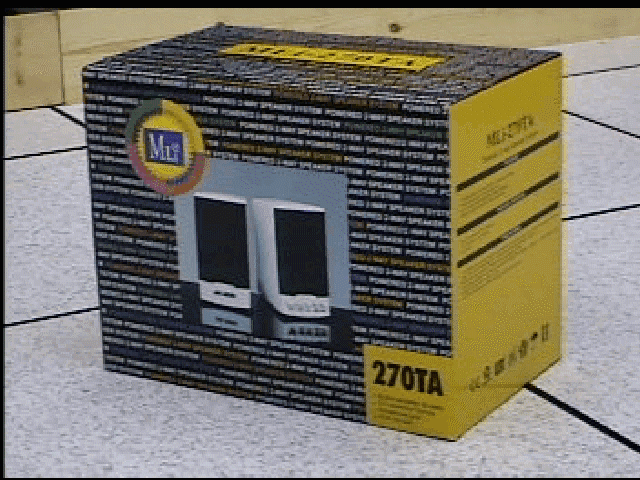

The objects used for experiments included a Tonka truck, a lightweight plastic ball, a large empty box and a small heavy box:

Click here to see a movie clip demo of the robot moving around its box, hitting objects. This clip is playing at 10x speed.

Click here to see a movie clip demo of the "interaction analyzer" system in action. The collisions in this clip are playing at normal speed, but the rest is playing at 10x speed.

Click here to see a movie clip of the polynomial path search.

Papers about this project:

B. Olsen and A. Hoover, "Calibrating a Camera Network Using a Domino Grid", Pattern Recognition, vol. 34 no. 5, May 2001, pp. 1105-1117.
A. Hoover and B. Olsen, "A Real-Time Occupancy Map from Multiple Video Streams", in the proceedings of IEEE International Conference on Robotics and Automation, Detroit, MI, May 1999.
A. Hoover and B. Olsen, "Path Planning for Mobile Robots Using a Video Camera Network", in the proceedings of IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Atlanta, GA, September 1999.
A. Hoover and B. Olsen, "Sensor Network Perception for Mobile Robotics", in the proceedings of IEEE International Conference on Robotics and Automation, San Francisco, CA, 2000, pp. 342-347.
